  • Bowers & Wilkins 702 Signature

    Floorstanding speaker

    The 702 Signature is finished in exclusive Datuk Gloss and features optimised crossovers, three Aerofoil Profile bass drivers, a Continuum cone midrange and a Carbon Dome tweeter housed in a Solid Body Tweeter-on-Top enclosure.

    * Price is for a single unit , Must order 2 pieces

    Crafted. Honed. Perfected.

    702 Signature is the ultimate expression of the 700 Series range. Based on the versatile 702 S2, it transforms sound using technologies from the 800 Series Diamond range as well as featuring bespoke Signature optimisations.

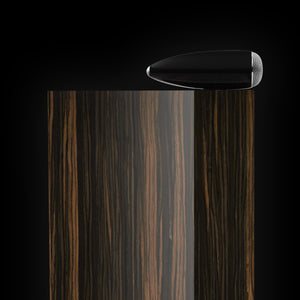

    Optimised tweeter housing

    Milled from a solid block of aluminium, the Solid Body Tweeter housing design creates an acoustically optimised housing that is exceptionally inert and resistant to resonances.

    Sharper detail

    Carbon Dome tweeters are purpose-built for the 700 Series and deliver pinpoint imaging accuracy and detailed insight in to your music.

    Truly amazing sound

    Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum cone midrange driver.

    Clean and revealing

    The midrange drivers in 702 Signature feature

    a decoupled design, developed from the 800 Series Diamond. Decoupling reduces cabinet coloration and boosts midrange clarity.

    Refined, articulate bass

    The Aerofoil Profile bass cone has a unique wing-shaped form, providing stiffness and rigidity where it's needed most. The result: accurate, dynamic bass.

    Technical specifications


    Model
    702 Signature

    Description
    3-way vented-box system

    Features
    Decoupled Carbon Dome tweeter
    Solid Body Tweeter-on-Top
    Continuum™ cone FST™ midrange
    Decoupled midrange
    Aerofoil™ Profile bass cones
    Flowport™

    Drive units
    1x ø25mm (1 in) Carbon Dome
    high-frequency
    1x ø150mm (6 in) Continuum cone
    FST midrange
    3x ø165mm (6.5 in) Aerofoil Profile bass

    Frequency range
    6dB at 28Hz and 33kHz

    Frequency response
    46Hz - 28kHz ±3dB

    Sensitivity
    90dB spl (2.83Vrms, 1m)

    Harmonic distortion
    2nd and 3rd harmonics (90dB, 1m)
    <1% 86Hz - 28kHz
    <0.5% 110Hz - 20kHz

    Normal impedance
    8Ω (minimum 3.1Ω)

    Reccomended amplifier power
    30W - 300W into 8Ω on
    unclipped programme

    Dimensions
    Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter
    and plinth
    Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth
    Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 452mm including plinth

    Net weight
    29.5kg (65 lb)

    Cabinet finishes
    Datuk Gloss

    Grille finishes
    Black
