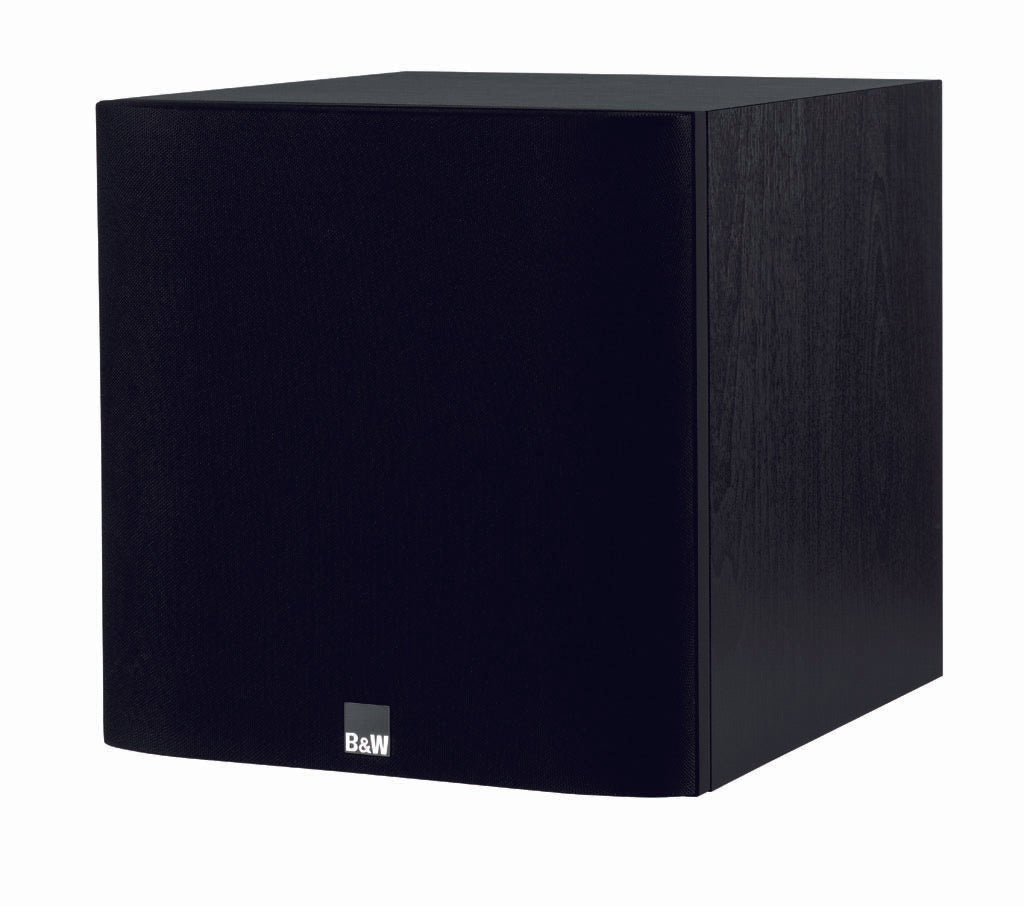

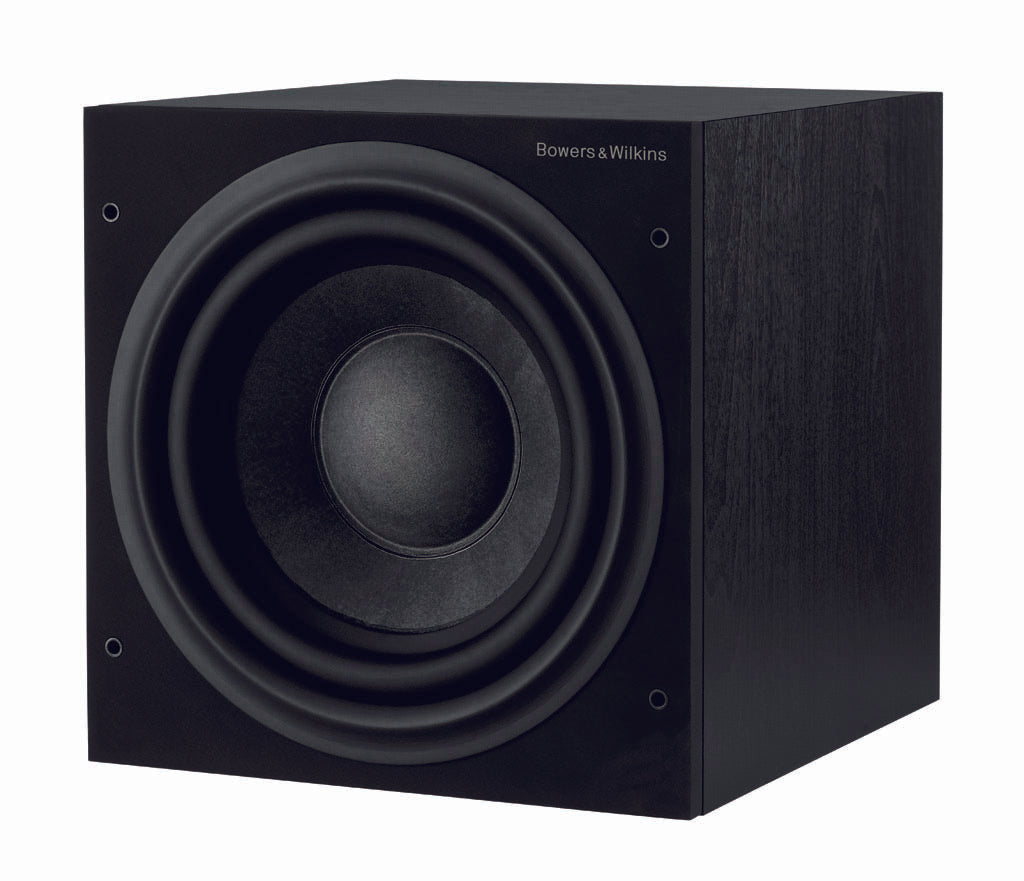

For big sound in smaller spaces, you can’t beat the ASW608, the most compact of the 600 Series subwoofers.
Its long-throw 200mm driver allows the ASW608 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the unit running cool, even when the music or movie action is whipping up a storm.

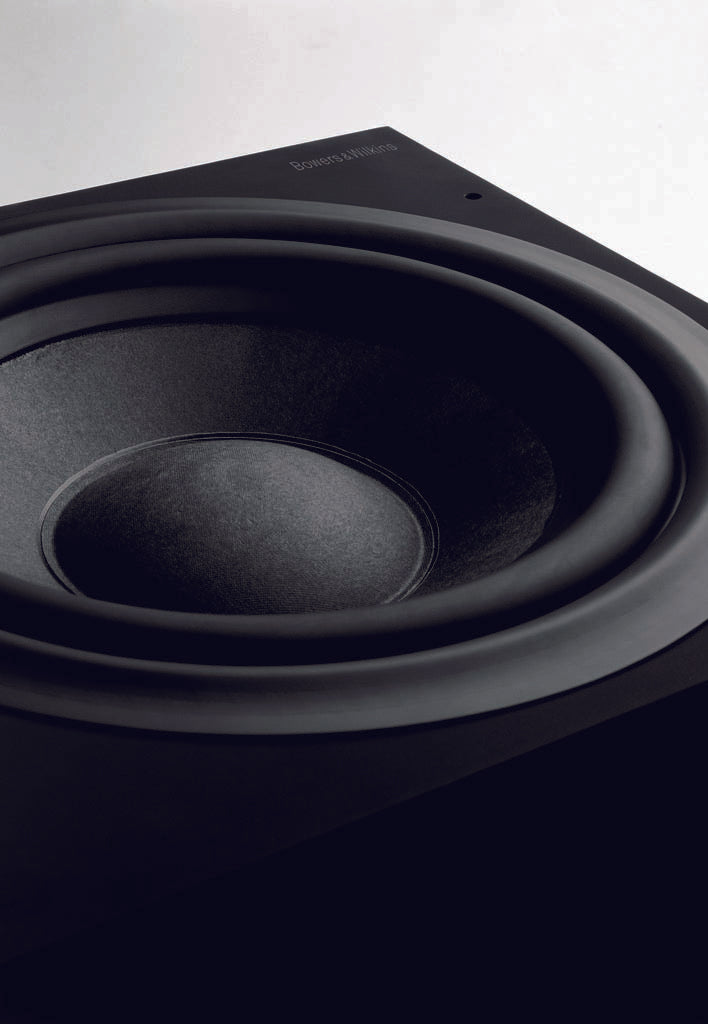

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
| Model | ASW608 |
| Drive unit | 200mm (8in) paper / Kevlar® cone long-throw |
| Power output | 200W |
| Rated power consumption | 40W |
| Standby power consumption | 0.5W |
| Input impedance | 33k |
| Signal / noise | >90dB |
| Functions | Volume level – line in Volume level – speaker in Low-pass filter frequency Low-pass filter bypass (line in only) Bass extension Bass roll-off alignment Auto sense on/standby Phase switch |
| Inputs | Stereo Line In (RCA Phono) Speaker In (Binding post) 12v trigger (3.5mm jack) |
| Height | 260mm (10.2in) not including feet |
| Width | 260mm (10.2in) |
| Depth | 330mm (13in) including grille and controls |
| Net weight | 8.85kg (19.5lb) |
| Cabinet | Matte Black Matte White |
| Grille | Black with Black Grey with White |
